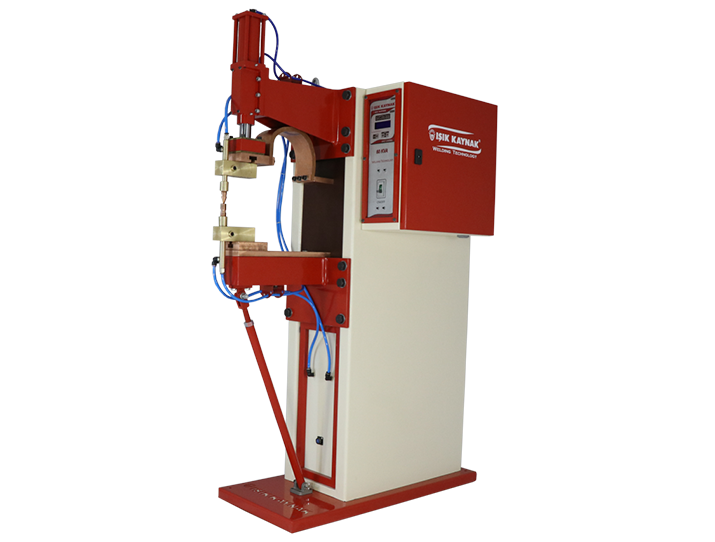

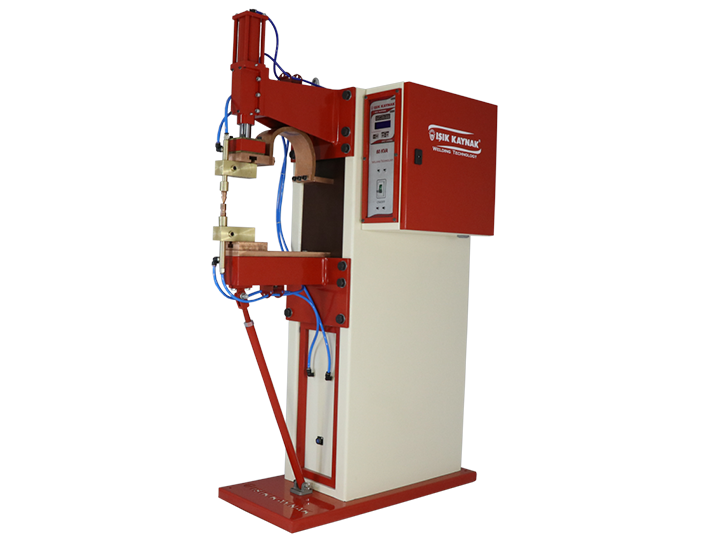

60 KVA PNÖMATİK PUNTA KAYNAK MAKİNASI

* Operating mains voltage 2x380 V - 50 Hz.

* 4 + 4 mm in mild steel, 2.5 + 2.5 mm in stainless steel and 12 + 12 mm in round steel.

* Transformer is manufactured from siliceous sheet and electrolytic glass fiber protected copper.

* Digital microprocessor control provides precision ampere setting. By the duration of the welding is ensured the desired continuous standard welding quality.
*Thanks to the pneumatic piston that provides to Upper arm stronger compression force.

* The body is strong and resistant against impact.

* IP 21 S is designed to meet TSE EN 60974-1, EN 60974-10 and CE safety standards.




SUPPLY VOLTAGE

380 V - 50 HZ

PRIMARY POWER

60 KVA

SETTING RANGE

DIGITAL

PROTECTION CLASS

IP 21 S

DIMENSIONS (WXLXH mm)

650X1200X1820 mm

WEIGHT (KG)

370 Kg

ARM LENGHT

400 mm

WELDING CAPACITY (IRON)

4,0 + 4,0 mm

WELDING CAPACITY (STAINLESS)

2,5 + 2,5 mm

MAIN CURRENT

100 A

<
