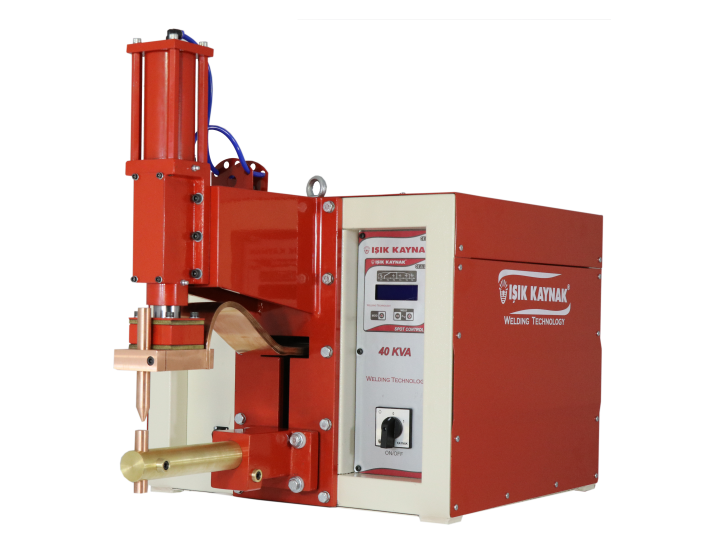

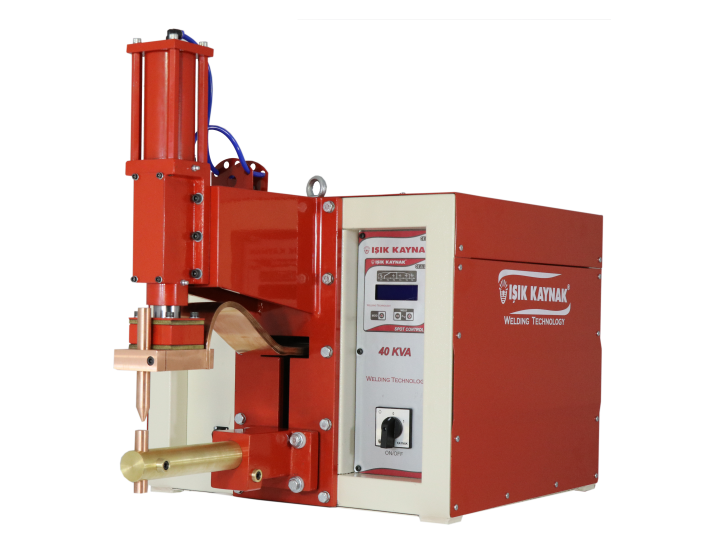

40 KVA MASAÜSTÜ PUNTA KAYNAK MAKİNASI

* Operating mains voltage 2x380 V - 50 Hz.

* 3 + 3 mm in mild steel, 2 + 2 mm in stainless steel and 10 + 10 mm in round steel.

* Transformer is manufactured from siliceous sheet and electrolytic glass fiber protected copper.

* Digital microprocessor control provides precision ampere setting. By the duration of the welding is ensured the desired continuous standard welding quality.
*Thanks to the pneumatic piston that provides to Upper arm stronger compression force.

* The body is strong and resistant against impact.

* IP 21 S is designed to meet TSE EN 60974-1, EN 60974-10 and CE safety standards.




SUPPLY VOLTAGE

380 V - 50 HZ

PRIMARY POWER

40 KVA

SETTING RANGE

DIGITAL

PROTECTION CLASS

IP 21 S

DIMENSIONS (WXLXH mm)

600X1000X560 mm

WEIGHT (KG)

200 Kg

ARM LENGHT

400 mm

WELDING CAPACITY (IRON)

2,5 + 2,5 mm

WELDING CAPACITY (STAINLESS)

2,0 + 2,0 mm

MAIN CURRENT

80 A

<
