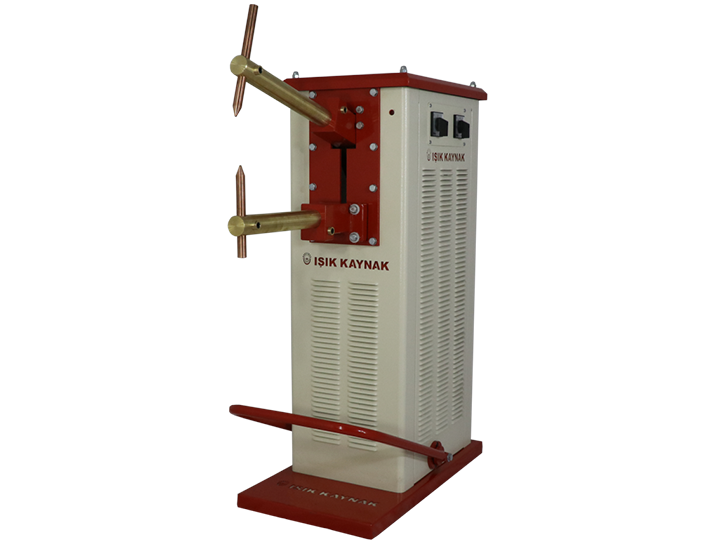

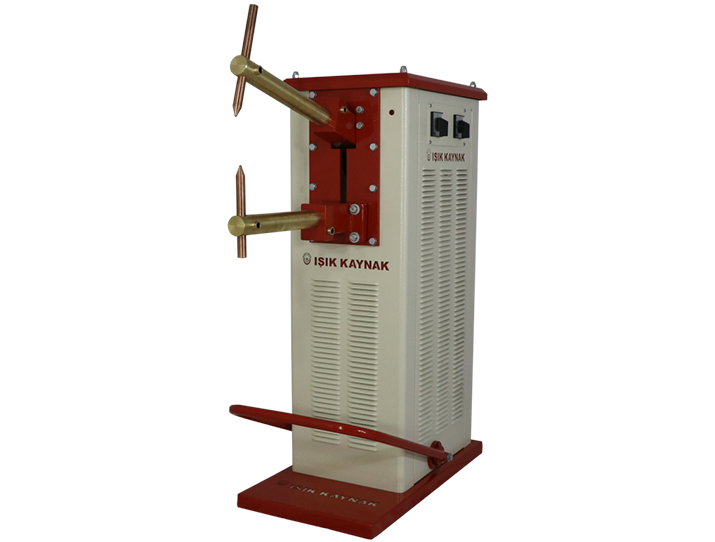

20 KVA AYAKLI PUNTA KAYNAK MAKİNASI

* Operating mains voltage 2x380 V - 50 Hz.

* 2 + 2 mm in mild steel, 1.5 + 1.5 mm in stainless steel and 8 + 8 mm in round steel.

* Transformer is manufactured from siliceous sheet and electrolytic glass fiber protected copper.

* Digital microprocessor control provides precision ampere setting. By the duration of the welding is ensured the desired continuous standard welding quality.

* 2x 5 amp steps can set.

* The body is strong and resistant against impact.

* IP 21 S is designed to meet TSE EN 60974-1, EN 60974-10 and CE safety standards.




SUPPLY VOLTAGE

380 V - 50 HZ

PRIMARY POWER

20 KVA

SETTING RANGE

2X5 LEVEL

PROTECTION CLASS

IP 21 S

DIMENSIONS (WXLXH mm)

450X1000X1150 mm

WEIGHT (KG)

125 Kg

ARM LENGHT

420 mm

MAIN CABLE

4 m

WELDING CAPACITY (IRON)

2,0 + 2,0 mm

WELDING CAPACITY (STAINLESS)

1,5 + 1,5 mm

MAIN CURRENT

50 A

<
